2014 Myka Custom Electric #159

Top: Claro Walnut
Body: Western Red Cedar

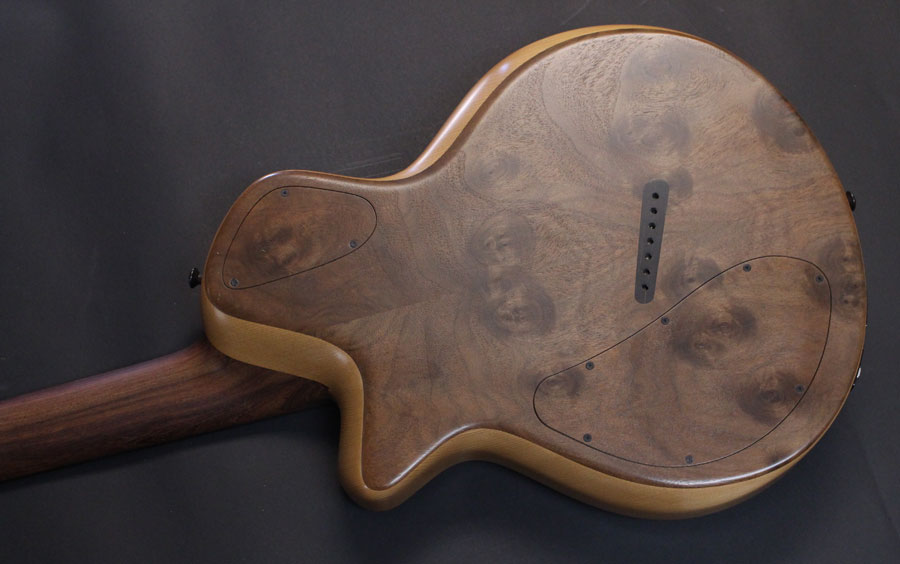

Back: Claro Walnut
Neck: Air Dried Brazilian Kingwood Rosewood (harvested in 1929)
Fingerboard: Ebony
Headstock veneer front/back: Ebony

Scale Length Bass: 26"
Scale Length Treble: 24.5"
Fretboard radius: 12"
Frets: 22

Nut Width: 2.05"
Fretwire: Jescar .047" tall by .095" wide

Pickups: Custom Myka 2-Channel humbuckers split into 3 Bass and 4 Treble string outputs

Switching: Master Volume, Bass/Treble Channel Volume (stacked), Bass Pickup Selector, Treble Pickup Selector
Electronics per pickup: Tone, 5-way Coil Selector
    5-way Coil Selector Switching:
        1. South Coil
        2. North Coil
        3. Humbucker in Series
        4. Humbucker in Series Out-Of-Phase
        5. Humbucker in Parallel

    5-way Pickup Selector Switching:
        1. Neck
        2. Neck and Bridge in Series
        3. Neck and Bridge in Parallel
        4. Neck and Bridge in Series Out-Of-Phase
        5. Bridge

Additional controls: Internal switch that inserts isolation resistors for the tone control circuits. Up=>Isolation, Down=>Bypass

Logo: Mother of Pearl
Side markers: pearl

Bridge: Myka Custom ebony bridge and adjustable saddle
Tuners: Hipshot locking in satin chrome
Finish: Shellac and wax
