2014 Myka Twangmaster Custom Electric #126

























For design page click here.



2014 Myka Twangmaster Custom Electric #126

WOODS:
Body: Air dried Pacific Alder hand harvested in Issaquah, WA
Neck: Master grade flamed maple
Fingerboard: Master grade birdseye maple
Pick Guard: Cocobolo with Ebony binding
Headstock Veneers: Cocobolo
Headstock Binding: Ebony
Truss Rod Cover: Matches headstock
Tuner knobs: Ebony
Volume/tone knobs: Cocobolo
Trem Cavity Cover: Cocobolo with ebony trim to match pick guard
Set neck

NECK:
Scale Length: 25.5"
Nut: 1-5/8" bone
Frets: 22
Neck carve: To spec

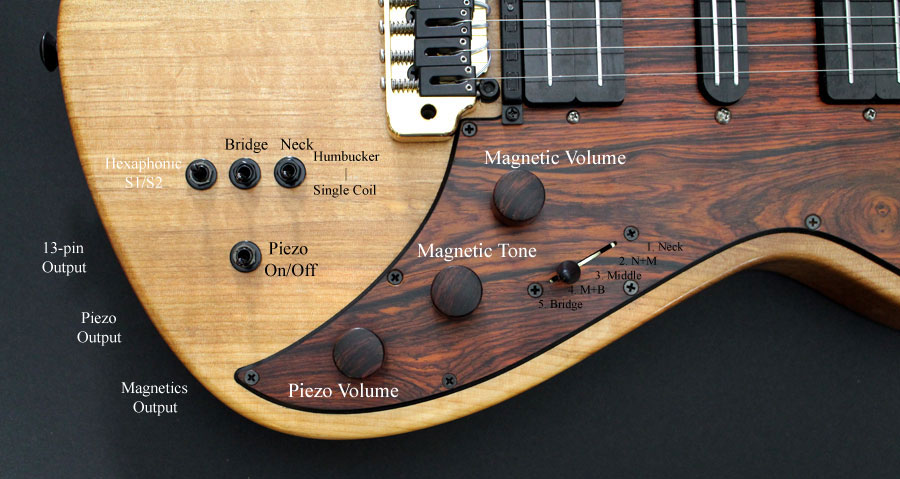

ELECTRONICS:
Pickups: Joe Baren HSH Set with TwoTone Humbuckers (tappable
Hexaphonic: GK-3 internally mounted
GraphTech Piezo
Outputs – One mag (dedicated), one piezo (dedicated), one 13-pin (synth only), isolated circuits, edge mounted
Switching: 5-way (standard Strat switching), piezo kill switch, S1/S2 synth, humbucker coil taps (2)
Knobs: Magnetic Master Volume and Tone, piezo volume
Synth volume always on

HARDWARE:
Bridge: Hipshot Gold with black saddles
Tuners: Locking Gold Hipshot with Ebony buttons
INLAY:
“Aiden Ryan” on truss rod cover
Fret Board inlays: Cocobolo blocks with mother of pearl stripes
Side Markers: Pearl with Cocobolo surround
Wasp inlay on back of headstock

Finish: Oil and wax

For design and process pics click here.
