Electric Black #080

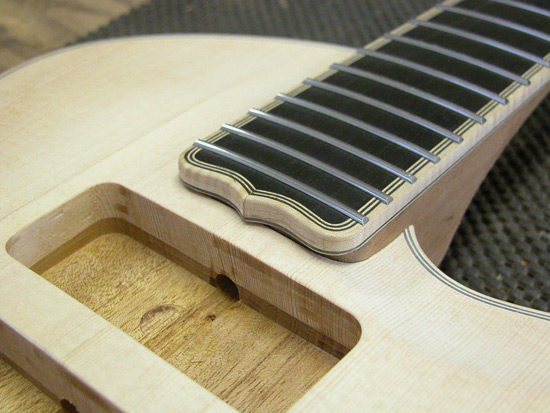

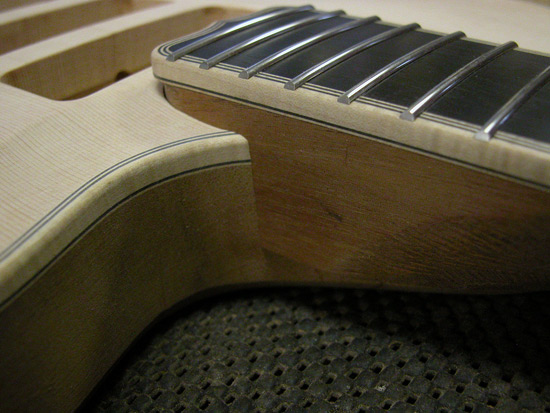

Neck joint and pickup routes:

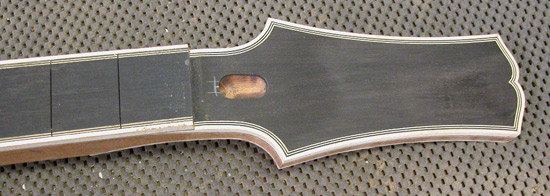

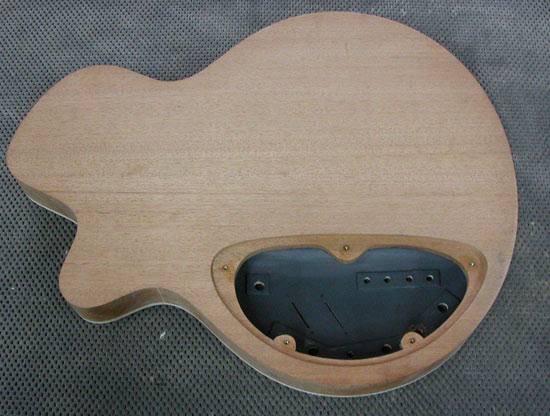

Coming together:

A look to the future:

Next to a new Dragonfly:

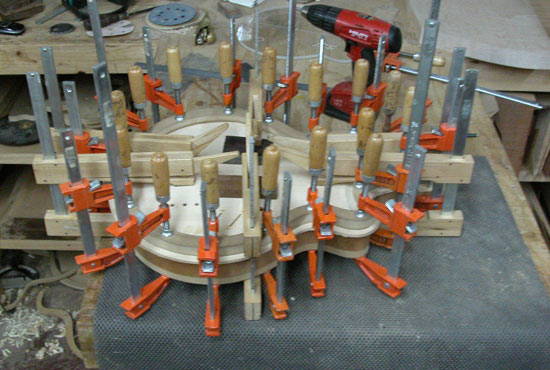

Coming together:


2008 Electric Black #080

Top: Spruce
Body: Semi-hollow Honduran Mahogany (centerblock, no soundholes)
Neck: Honduran Mahogany
Fingerboard: Ebony
Headstock Front: Ebony
Headstock Back: Flamed Maple
Flamed Maple pickup covers
Binding: Flamed maple with black/white/black/white thicker purfling

Scale Length: 24.625"
Fretboard radius: 12"
Frets: 22
Neck carve: to match #065

Pickups: Pickups: Dimarzio Soapbar sized humbuckers

Electronics: Custom
    Concentric Volume and Tone, 3-way per pickup, plus Master Volume

    Switching: 5-way:
        1. Neck
        2. Neck and Bridge in parallel
        3. Neck and Bridge in series
        4. Neck and Bridge out of phase
        5. Bridge

    Switching: 3-way Middle Pickup:
        1. Add Middle
        2. Middle Bypass
        3. Middle Blower

     3-way for each pickup:
        1. HB series
        2. Coil tap
        3. HB parallel

     Tone 3-way for each pickup:
        1. Custom Cap-1
        2. Tone bypass
        3. Custom Cap-2

    Additional Switching: Bridge pickup blower:

Logo: Pearl
Side dots: Pearl
Bridge: Bigsby B7, Wilkinson Roller Bridge
Tuners: Nickel Locking Hipshot
Finish: Black Nitrocellulose Lacquer
