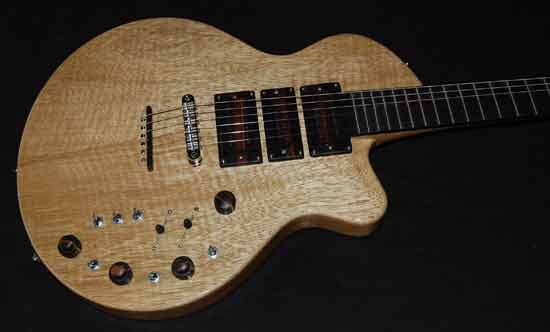

2009 Korina Brazilian Electric #078 - aka: Blonde Beauty

This guitar was an extremely satisfying guitar to build. The wood recipe was simple: Korina and Brazilian rosewood. Two tonewoods well known for their superior tonal qualities. This combination of woods coupled with a complex yet simple to use switching setup makes for an amazingly versatile instrument. This guitar can cover it all and then some. The choice of the Joe Barden TwoTone humbuckers and the Barden single coil allows for all of the classic humbucker tones while being able to switch to single coil mode to open up the single coil realm. A simple concept that yeilds a vast array of tonal options. In a word: versatility.

Custom knobs made by: David King

Click here for process pictures.

Click here for more pictures.

2009 Korina Brazilian Electric #078

Top: White Limba/Korina
Body: White Limba/Korina
Neck: White Limba/Korina
Fingerboard: Brazilian Rosewood
Headstock Front: White Limba/Korina
Headstock Back: Brazilian Rosewood
Brazilian Rosewood pickup covers, knobs, tailpiece

Scale Length: 24.625"
Fretboard radius: 12"
Frets: 22
Neck carve: to match #065

Pickups: Pickups: 2-Joe Barden TwoTone, 1-Joe Barden SingleCoil
Electronics: Custom
    Concentric Volume/Tone w/3-way cap switch per pickup, 2-way single/hum switch per humbucker, plus Master Volume

    Switching: 5-way:
        1. Neck
        2. Neck and Bridge in parallel
        3. Neck and Bridge in series
        4. Neck and Bridge out of phase
        5. Bridge

    Switching: 3-way Middle Pickup:
        1. Add Middle
        2. Middle Bypass
        3. Middle Blower

     2-way for each humbucker pickup:
        1. Humbucker
        2. Single Coil

     Tone 3-way for each humbucker pickup:
        1. Custom Cap-1
        2. Tone bypass
        3. Custom Cap-2

    Additional Switching: Bridge pickup blower:

Logo: Brazilian rosewood
Side dots: Pearl
Bridge: TonePros Tune-o-matic
Tuners: Nickel Locking Hipshot
Finish: Nitrocellulose Lacquer
